SKU: S2KLASCategories: Starke, Braking Devices

Starke Secondary Brake Device (2,204 lbs)

$1,629.00

  • Wire Rope, Wire Rope Assembly, & Lower Configuration Included
  • Upper & Lower Mounting Brackets NOT Included
  • Starke OEM Wire Rope Required w/ Secondary Brake Device

Starke Secondary Brake Device: Safe and Reliable

The Starke Secondary Brake Device is an overspeed brake device for suspended platforms. Using over speed detection, the precision jaws clamp down on the wire rope automatically in the event of a platform fall. The Starke Secondary Brake Device will always be there to stop a fall, protecting you and your employees from injury.

Starke Secondary Brake Device Platform Assembly


Starke Secondary Brake Device S2KLAS
S2KLAS

Secondary Brake Device Applications

You can use this overspeed brake device in several applications as part of a fall protection system. Use it for powered work platforms, freight elevators (VRCs), and window washing scaffolds, and any other platforms suspended in air.

Features

  • ¬†Capacity: 2,204 lb
  • Lock Speed: 100 FPM
  • Wire Rope Diameter:¬†10.2 mm (0.40″)

Important Safety Note: The Starke OEM Wire Rope is Required.

What’s Included?

  • 20′ Wire Rope
  • Wire Rope Assembly
  • Lower Configuration

Upper and Lower Mounting Brackets are NOT included.

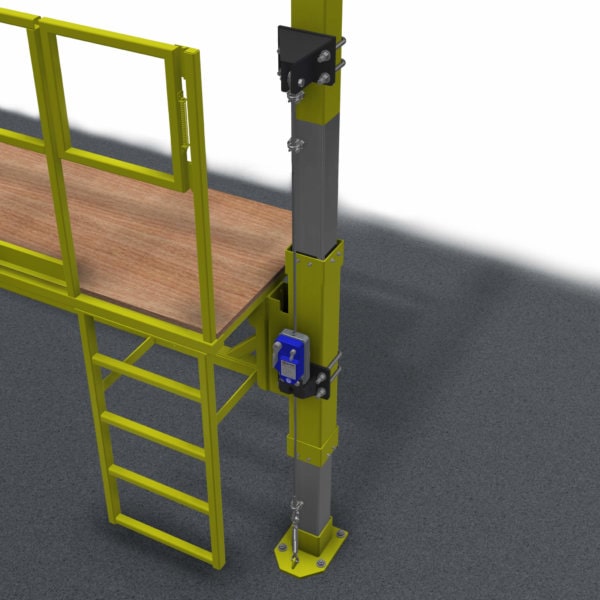

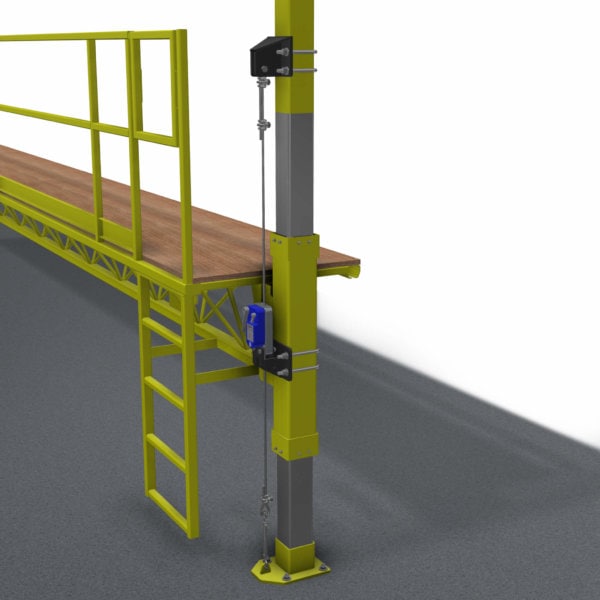

Secondary Brake Device Hot Spot ImageSecondary Brake Device Workplatform Birds Eye ViewSecondary Brake Device Workplatform Bottom View

Weight 12 lbs
Dimensions 12 × 12 × 12 in
Brand

Lock Speed

100 FPM

Wire Rope Diameter

10.2 mm, 11.5 mm

Inspection Period

12 Months

Country of Origin

Import

Length

15', 20', 25', 30', 40', 50'
